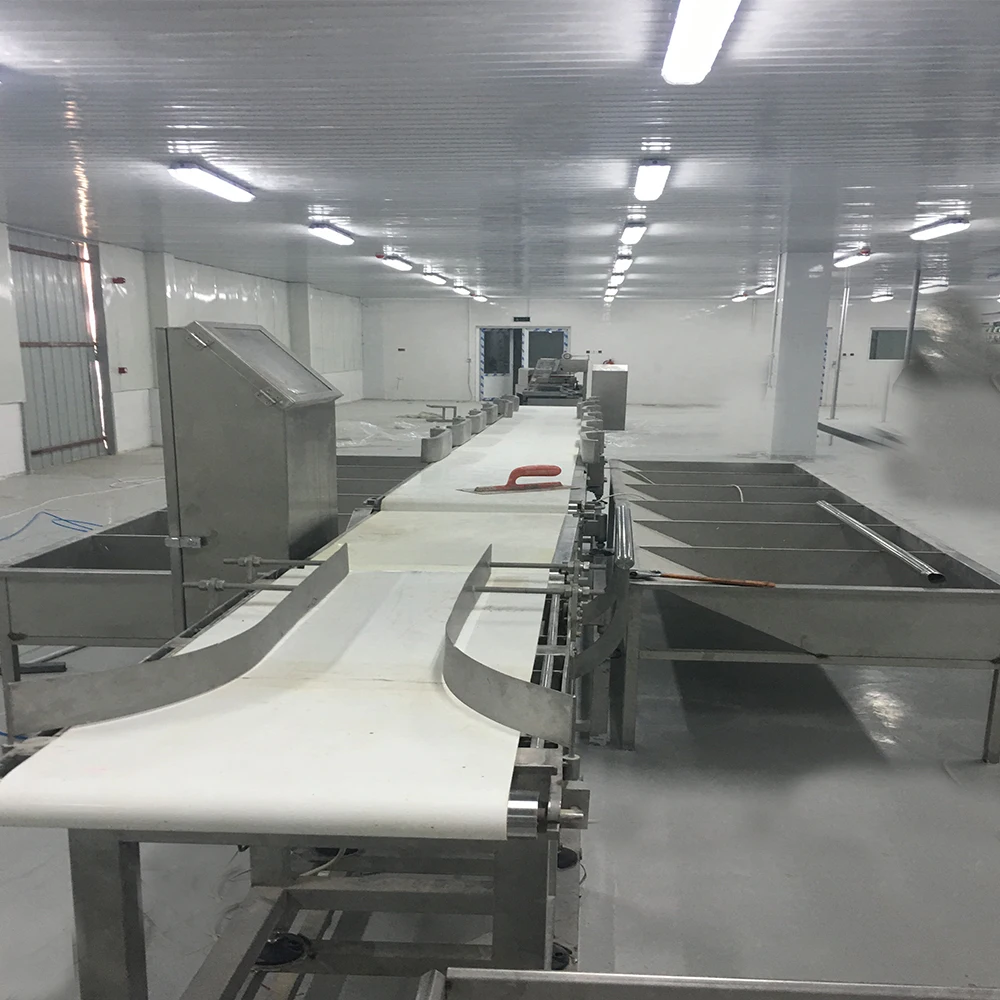

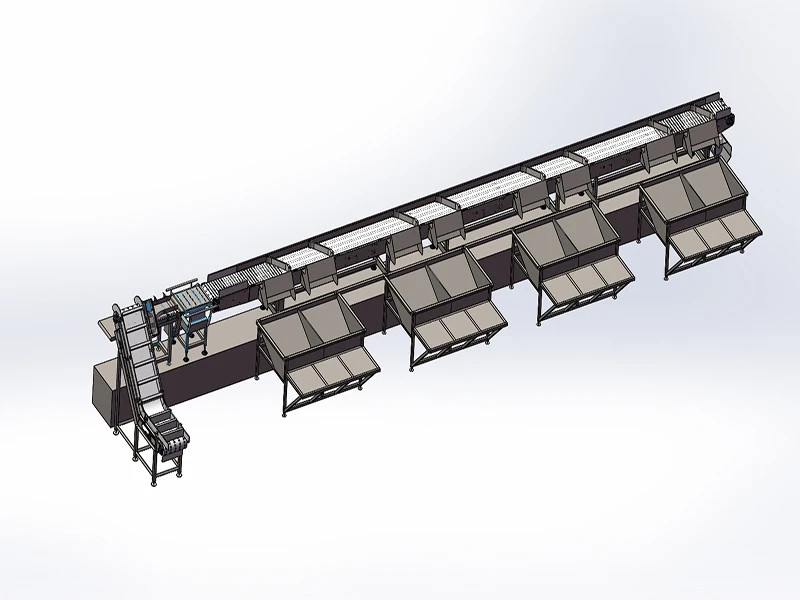

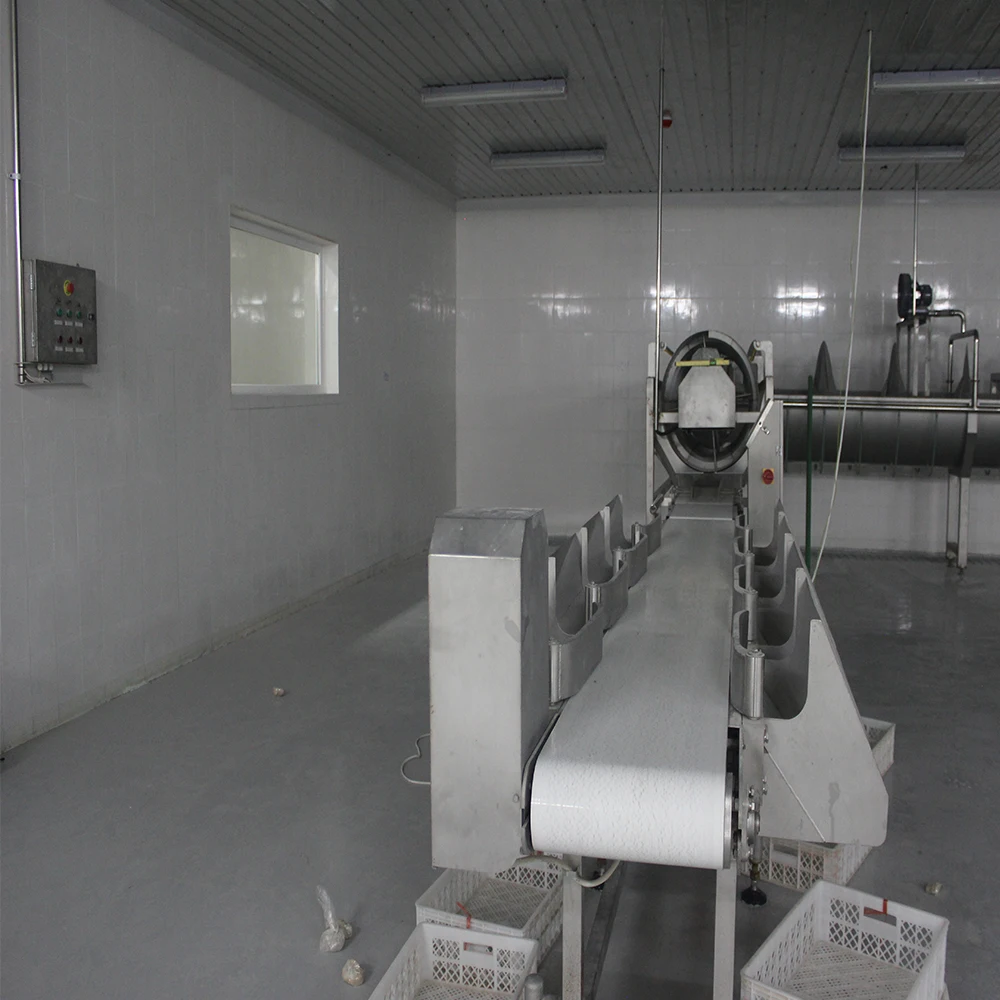

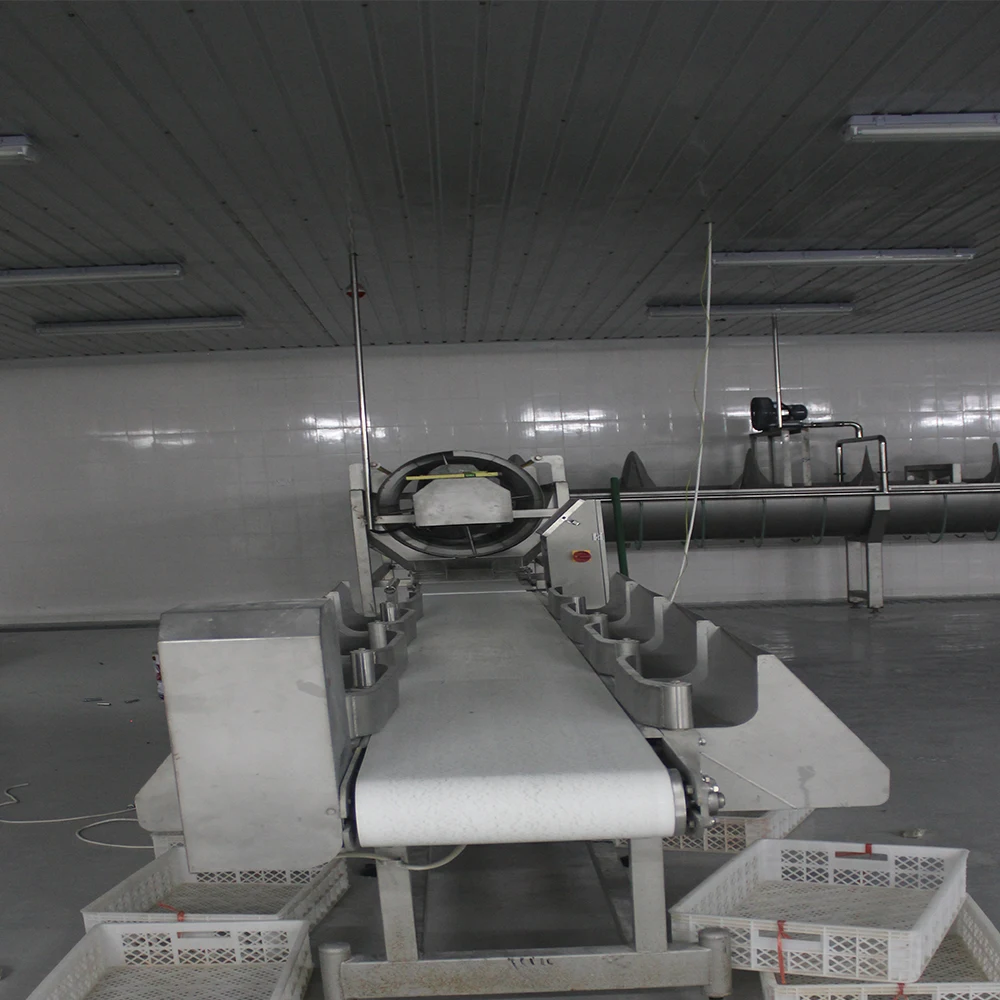

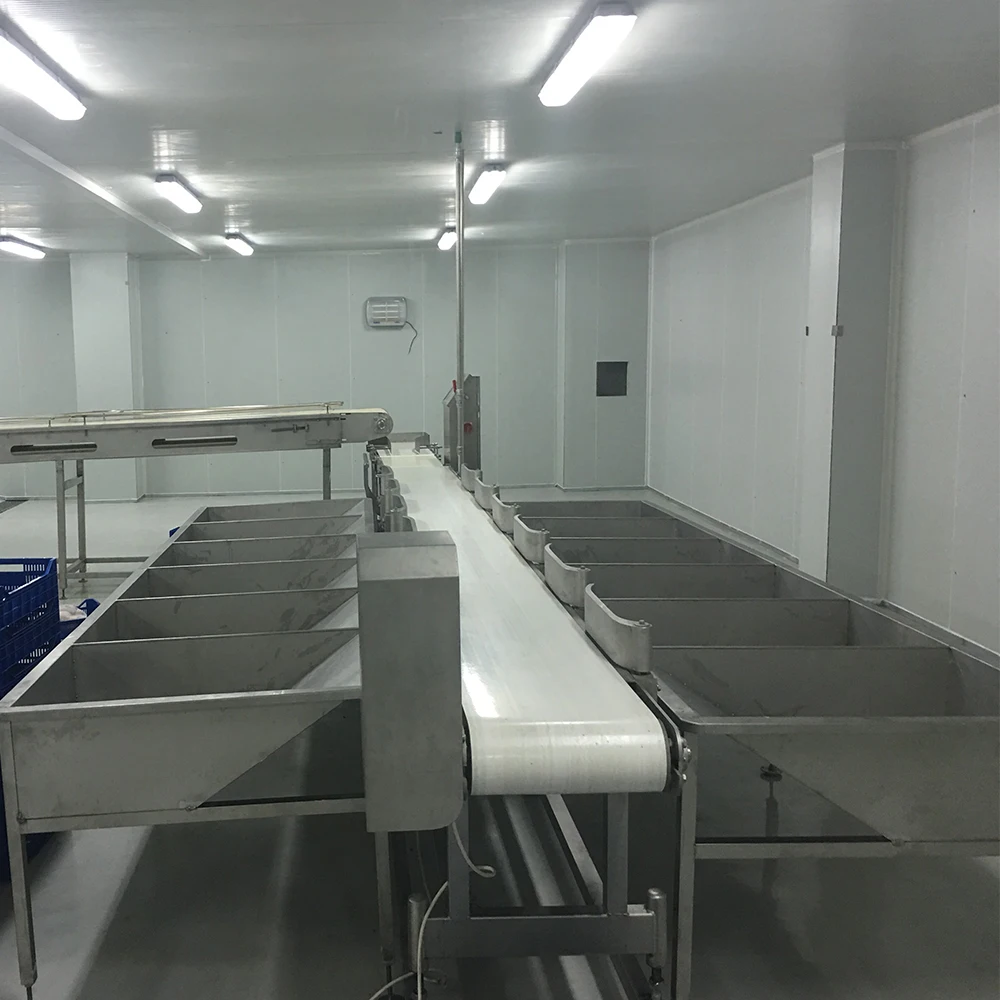

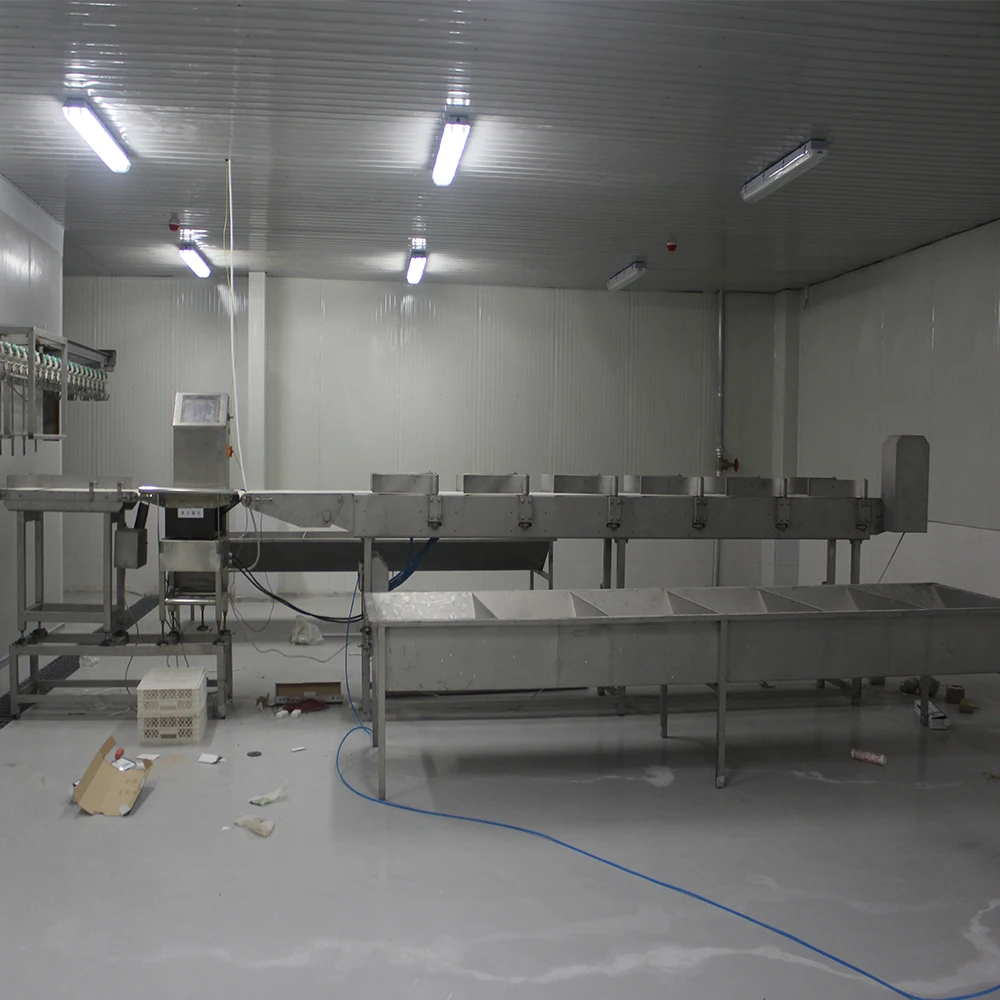

CONNECT belt weighing and grading has four parts: Conveying Belt Conveyor, Weighing Belt Conveyor, Grading Belt Conveyor and Electric Control Cabinet. The Conveying Belt Conveyor conveys the poultry carcasses, Weighing Belt Conveyor complete the weighing function and transmit the data to the touch screen for the data processing and storage. The Electric Control Cabinet control all the conveyors and transmit the data as well as manage the procedures.
Technical characteristics: 1. High-precision automatic check weighing scale, high weighing accuracy,speed and display is accurate and reliable. Low failure rate, accuracy is + /-1g (theoretical value) 2. It is pneumatic work, fault less, reduce pollution during grading. 3. It is fast work, the speed max. Is reach to 150pcs/Sec. , which is 9000pcs/H 4. Touch operating panel, operation is simple and convenient. 5. The material input speed can be adjusted continuously through variable transmission. 6. The whole machine is made of stainless steel 304, IP65 protection, health, and easy to clean.
Specification: Totally 8-12 grades The collecting tank width is 420mm Volume of tank is 5kg The pression of weighing is 5~±10 g The weighing products size: 250mm X 400mm X300mm Power is :1500w Class of protection is IP65 With chicken receiving stations at both sides of belt
Benefit: Accurate grading. Improve product integrated value-added Improve the utilization of raw material Labor-saving. One worker operate, which reduce the chance of human contact products, to meet food safety requirements.
1. how many types of chickens can it be processed?
A: It can process broiler ,layers, quails,goose,ducks and pigeon.
2.what is the capacity of this line?
A: We supply slaughter lines from 300bph to 1200bph, and if about 100-200bph, we suggest client to take manual slaugter system(electric scalder, drum plucker), and 300-500bph, you can take our compact slaughter line.
3.can it be process different weight of birds?
A: of course , but all the birds must be in the range of shackles, if the birds weight is too much different , they will drop from shackles, and the shackle distance is different from different birds.
4.Can you design and install the project for us?
A:We have good design and installation department for help you on this project.
5.What is the differences from Manual EV line to Automatic EV line?
A: as you know ,manual EV line is working by labors, and it can work with different weight of birds, but automatic line will only process almost same birds.
6.What is the differences from screw chiller to air chiller?
A: screw chiller is working with cooling water, so if you want the effect is good, you need arrange water chiller and ice flaker for cooling the normal water into cold water, its okay for the country that water is enough. Air chiller is like a cold room, which uses compressor unit and conveying line to make birds moving in the room, then the cold air meet with carcasses.
7.How is Connect Group?
A: Connect Group is a company in China, which have his own trademark, Our group totally have seven
companies, which including one poultry processing equipment manufacture, two rendering equipment manufacture, one broiler equipment plant, one fridge equipment construction plant, one trading company which responsible for marketing and Import and Export, and one Industrial company, we also cooperate with Netherland poultry processing equipment supplier JM to build fully automatic poultry processing plant, which covers the shortage of fully automatic Evisceration and cut-up equipment in China market.
8: Why we select Connect Group?
A:Connect Group is with the best service for the clients..Can you design and install the project for us?
