2019 Small Chicken Slaughtering scalding Defeathering Quail Poultry Processing Plant crate belt conveyor Machine

FOB Reference Price:Get Latest Price
$3,000.00 - $10,000.00 / Case | 1 Case/Cases (Min. Order)
Model Number:
CNCBC-6000
Power(W):
2KW
Shipping:
Support Sea freight · Land freight
Lead Time:
Quantity(Cases) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, farms, Construction works , Food & Beverage Shops
Local Service Location:
none
Showroom Location:
none
Condition:
New
Application:
POULTRY
Place of Origin:
Jiangsu, China
Brand Name:
CONNECT
Voltage:
380V 50Z
Dimension(L*W*H):
Customerized
Weight:
Customerized
Certification:
ISO 9001
Warranty:
1 YEAR
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Key Selling Points:
Automatic
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 YEAR
Core Components:
Bearing, MOTOR, pump, GEAR, PLC, PRESSURE VESSEL, engine, Gearbox
Name:
Belt conveyor
Material:
Stainless Steel 304
Color:
Silver White
Capacity:
200-12000BPH
Motor:
Farmous Brand
Processing Types:
Poultry Chicken Duck Goose
Function:
Automation Plant
Feature:
Customized Slaughter Line
Advantage:
High Efficiecny
Installation:
Engineer guidance
Supply Ability
Supply Ability:
10 Case/Cases per Month
Packaging & Delivery
Packaging Details
bulk packing
Port
SHANGHAI
Lead Time :
Quantity(Cases) 1 - 1 >1
Est. Time(days) 15 To be negotiated

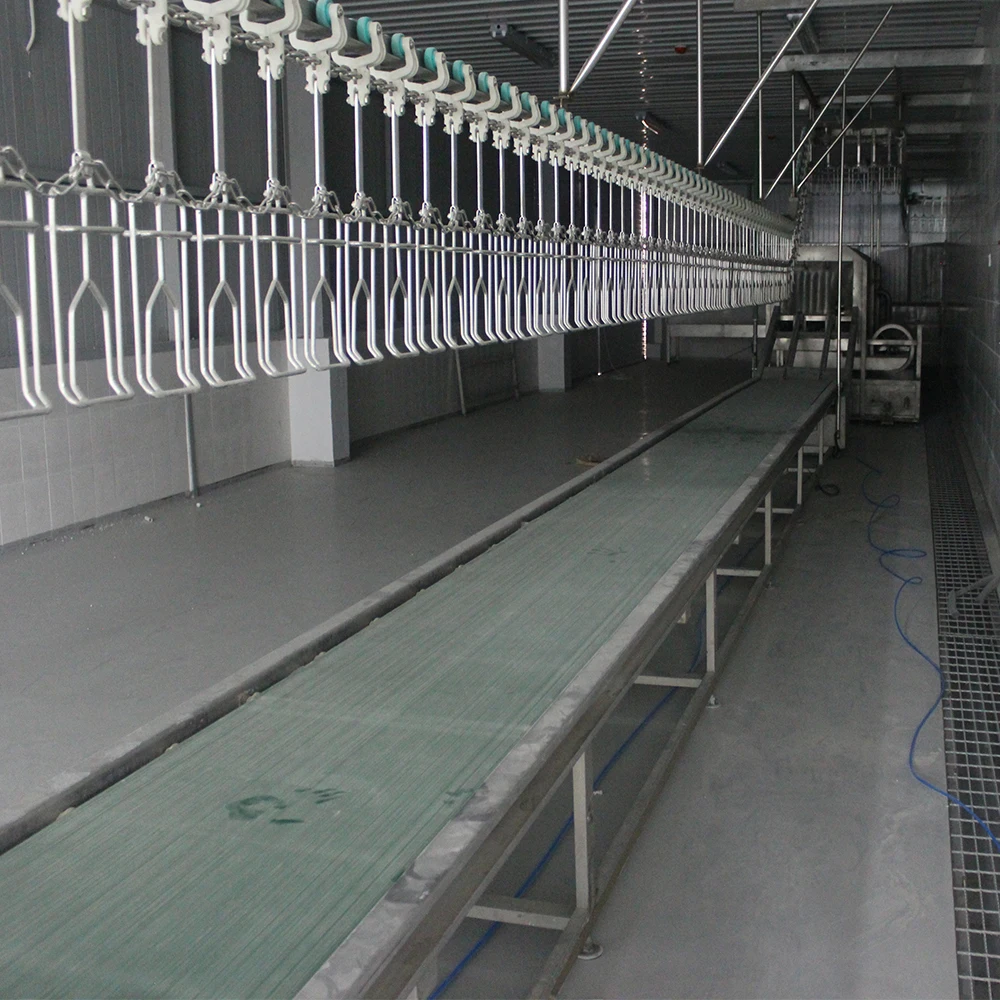

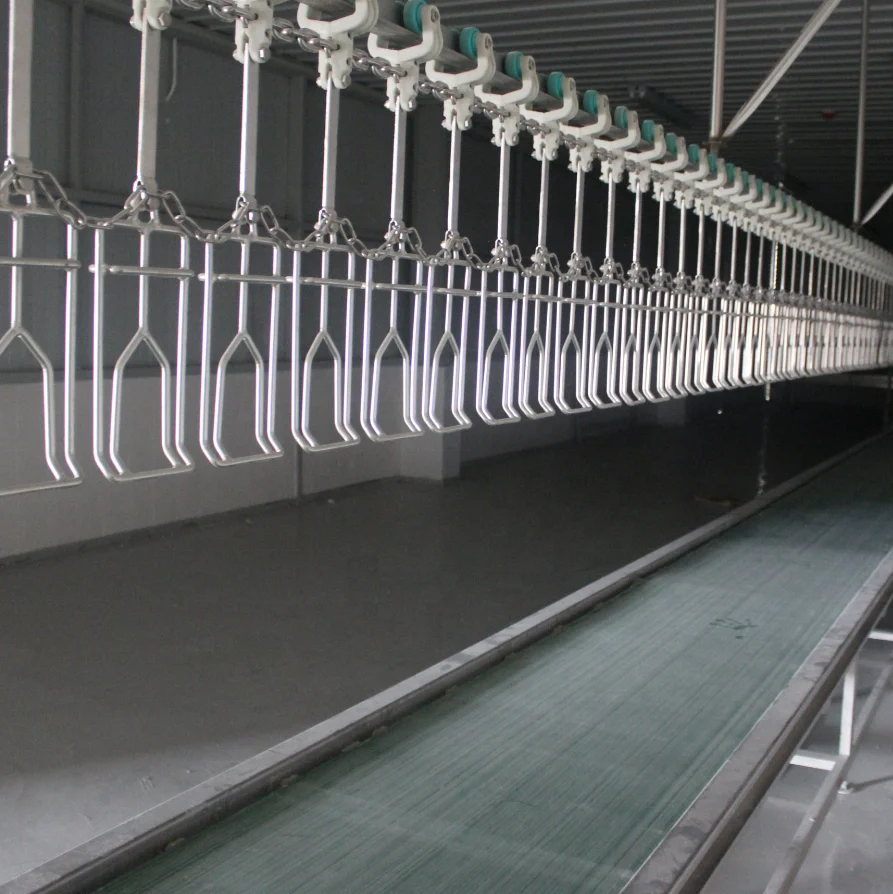

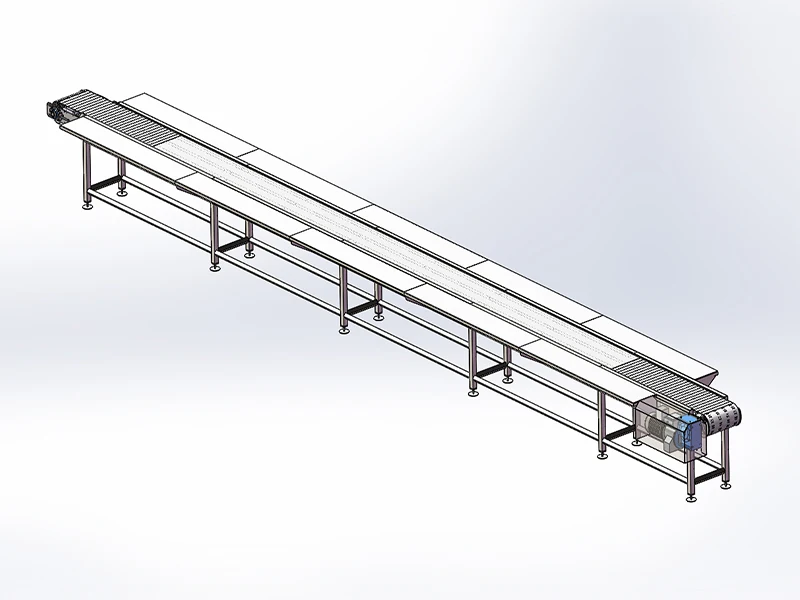

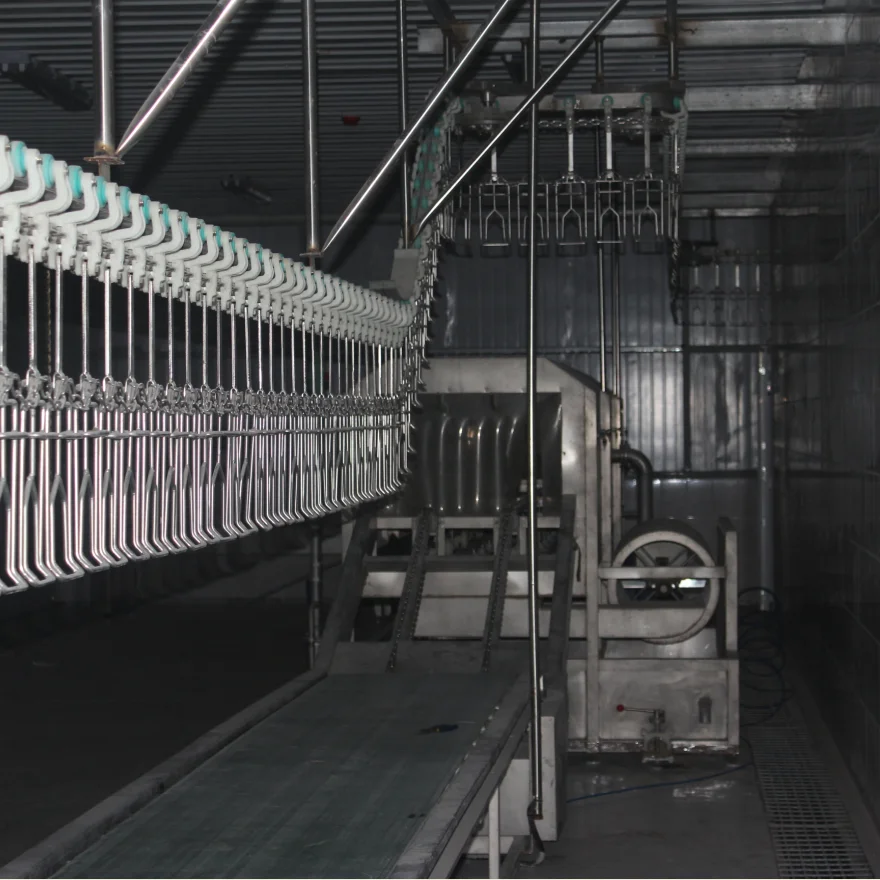

Belt conveyor

CONNECT crates conveying system with full industry experience and technology, All the crates conveyor manufactured with high
quality stainless steel and industry grade
belt system,quality guaranteed driving system, and installed in perfect mechanical structures. The system is easy for clients
installation, high performance, belt is corrosion
resistance, perfect furnish, with long service life.
The fram of conveyor all manufactured with stainless steel, the belt with supporting rollers which spefication is ø60×3
stainless steel pipe, the belt is industrial grade corrision resistance. The commisioning system is motor reducer which which
power is 0.75kw.

Crates conveying system can be used with crates destacker & stacker machine to realized the automatic live chicken crates
receiving in big capacity poultry processing plant.
Model
Specification (mm)
Capacity (BPH)
Power (KW)
CBC-3000
3000 x 800 x 550
500
0.75
CBC-4000
4000 x 800 x 550
1000-1500
1.5
CBC-5000
5000 x 800 x 550
1500-2000
1.5
CBC-6000
6000 x 800 x 550
2000-4000
1.5
CBC-8000
8000 x 800 x 550
5000
1.5
CBC-9000
9000 x 800 x 550
6000
2.2
CBC-10000
10000 x 800 x 550
Above 8000
≤2.2
1. how many types of chickens can it be processed?
A: It can process broiler ,layers, quails,goose,ducks and pigeon.

2.what is the capacity of this line?
A: We supply slaughter lines from 300bph to 1200bph, and if about 100-200bph, we suggest client to take manual slaugter system(electric scalder, drum plucker), and 300-500bph, you can take our compact slaughter line.

3.can it be process different weight of birds?
A: of course , but all the birds must be in the range of shackles, if the birds weight is too much different , they will drop from shackles, and the shackle distance is different from different birds.

4.Can you design and install the project for us?
A:We have good design and installation department for help you on this project.

5.What is the differences from Manual EV line to Automatic EV line?
A: as you know ,manual EV line is working by labors, and it can work with different weight of birds, but automatic line will only process almost same birds.

6.What is the differences from screw chiller to air chiller?
A: screw chiller is working with cooling water, so if you want the effect is good, you need arrange water chiller and ice flaker for cooling the normal water into cold water, its okay for the country that water is enough. Air chiller is like a cold room, which uses compressor unit and conveying line to make birds moving in the room, then the cold air meet with carcasses.

7.How is Connect Group?
A: Connect Group is a company in China, which have his own trademark, Our group totally have seven
companies, which including one poultry processing equipment manufacture, two rendering equipment manufacture, one broiler equipment plant, one fridge equipment construction plant, one trading company which responsible for marketing and Import and Export, and one Industrial company, we also cooperate with Netherland poultry processing equipment supplier JM to build fully automatic poultry processing plant, which covers the shortage of fully automatic Evisceration and cut-up equipment in China market.

8: Why we select Connect Group?
A:Connect Group is with the best service for the clients..Can you design and install the project for us?
