top brand european standard poultry farm broiler abattoir screw chiller machine for chicken slaughterhouse

FOB Reference Price:Get Latest Price
$8,500.00 - $20,000.00 / Case | 1 Case/Cases (Min. Order)
Model Number:
CNSC-4000
Power:
0.37kw
Shipping:
Support Sea freight · Land freight
Lead Time:
Quantity(Cases) 1 - 1 >1
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, farms, Construction works , Food & Beverage Shops
Local Service Location:
none
Showroom Location:
none
Condition:
New
Application:
POULTRY
Place of Origin:
Jiangsu, China
Brand Name:
CONNECT
Voltage:
380v 50HZ
Dimension(L*W*H):
Customerilized
Weight:
Customerilized
Certification:
ISO 9001
Warranty:
1 YEAR
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Key Selling Points:
Automatic
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 YEAR
Core Components:
Bearing, MOTOR, pump, GEAR, PLC, PRESSURE VESSEL, engine, Gearbox
Name:
Screw water chiller
Usage:
Slaughtering Process
Material:
Stainless Steel 304
Color:
White
Processing:
Complete Slaughter Line
Advantage:
High Efficiecny
Capacity:
200-12000BPH
Processing Types:
automatic line
Motor:
Farmous Brand
installation:
Engineer guidance
Supply Ability
Supply Ability:
10 Case/Cases per Month
Packaging & Delivery
Packaging Details
bulk packing
Port
SHANGHAI
Lead Time :
Quantity(Cases) 1 - 1 >1
Est. Time(days) 20 To be negotiated

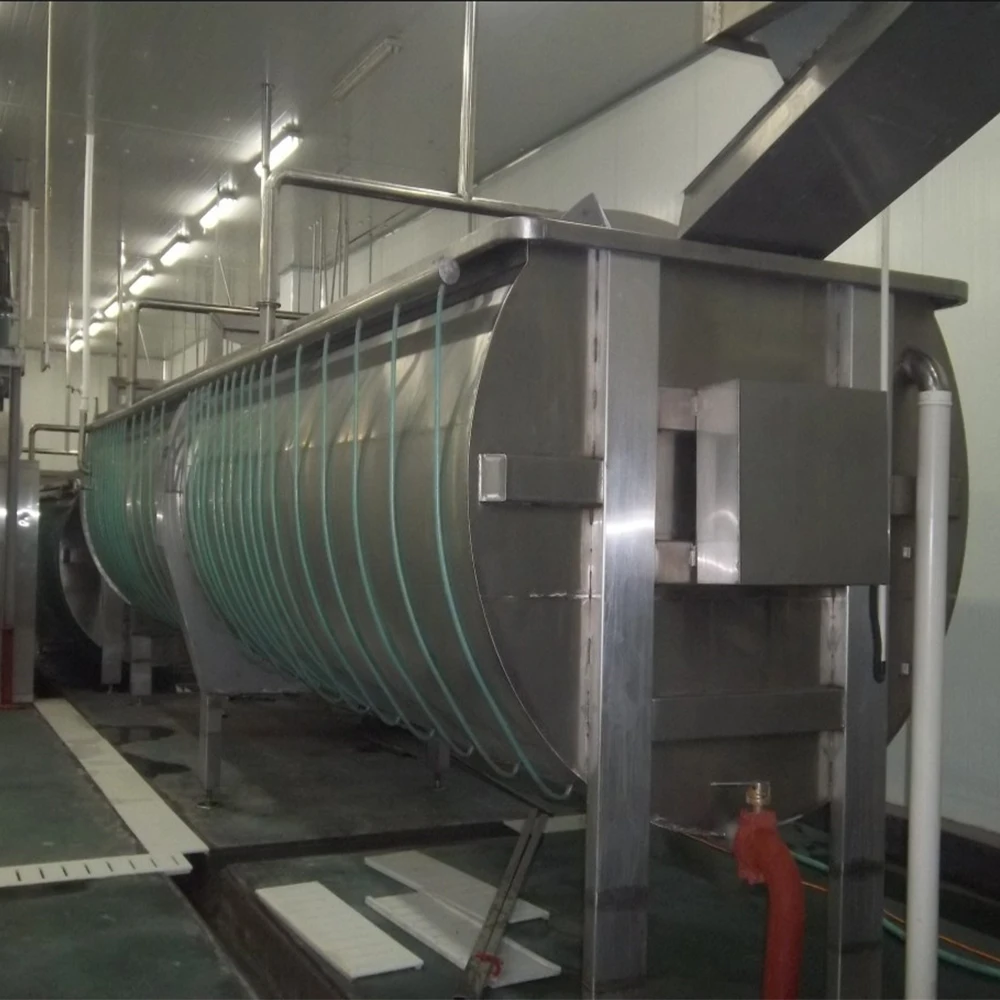

Screw chiller

1. Function
Screw Chilling is the equipment in Poultry Processing Line for poultry carcass or byproducts cooling down the temperature. During
operation, the chiller need to add 0-4 degrees cold water or ice, after 45-60 minutes of pre-cooling time, so that the center
temperature of products falls down from 38 degrees to below 8 degrees, effectively inhibit deterioration and carcass bacteria. The
device has the following special features and benefits:
2. Small Installation area
3. Energy dissipation area is small, saving energy.

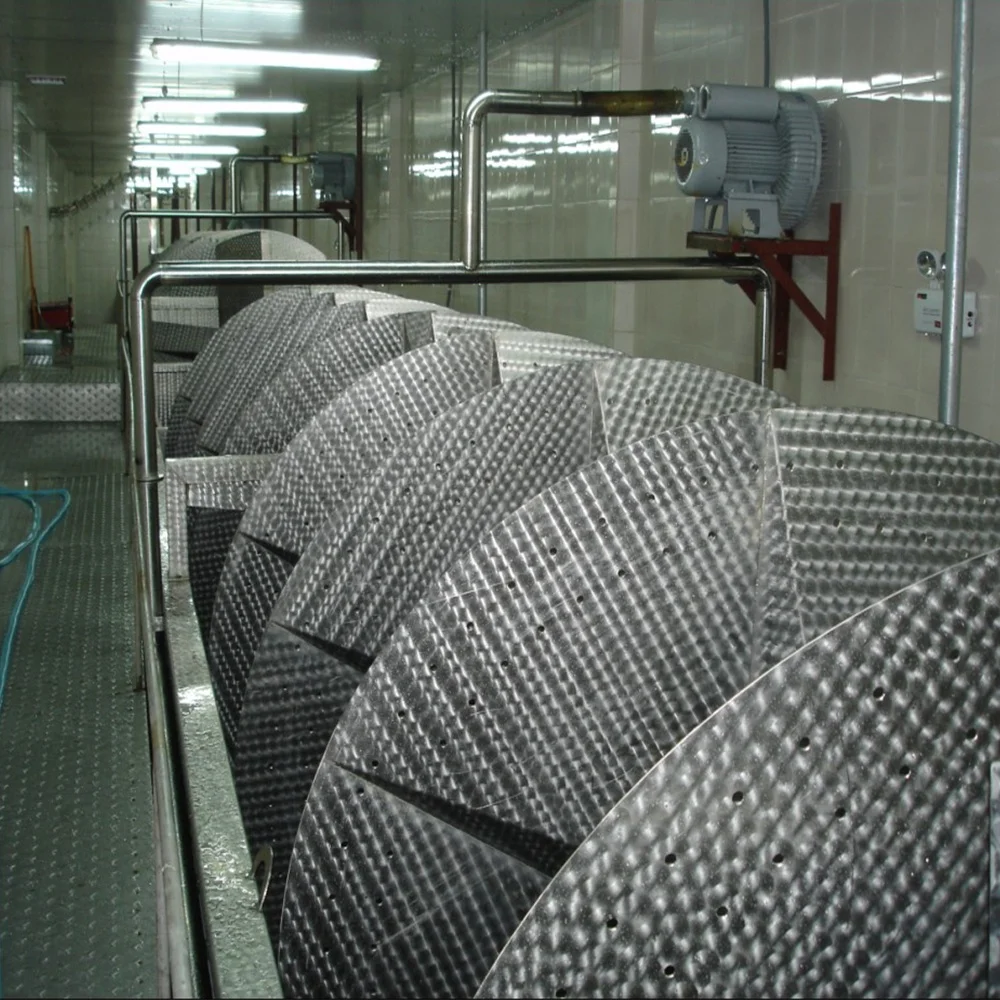

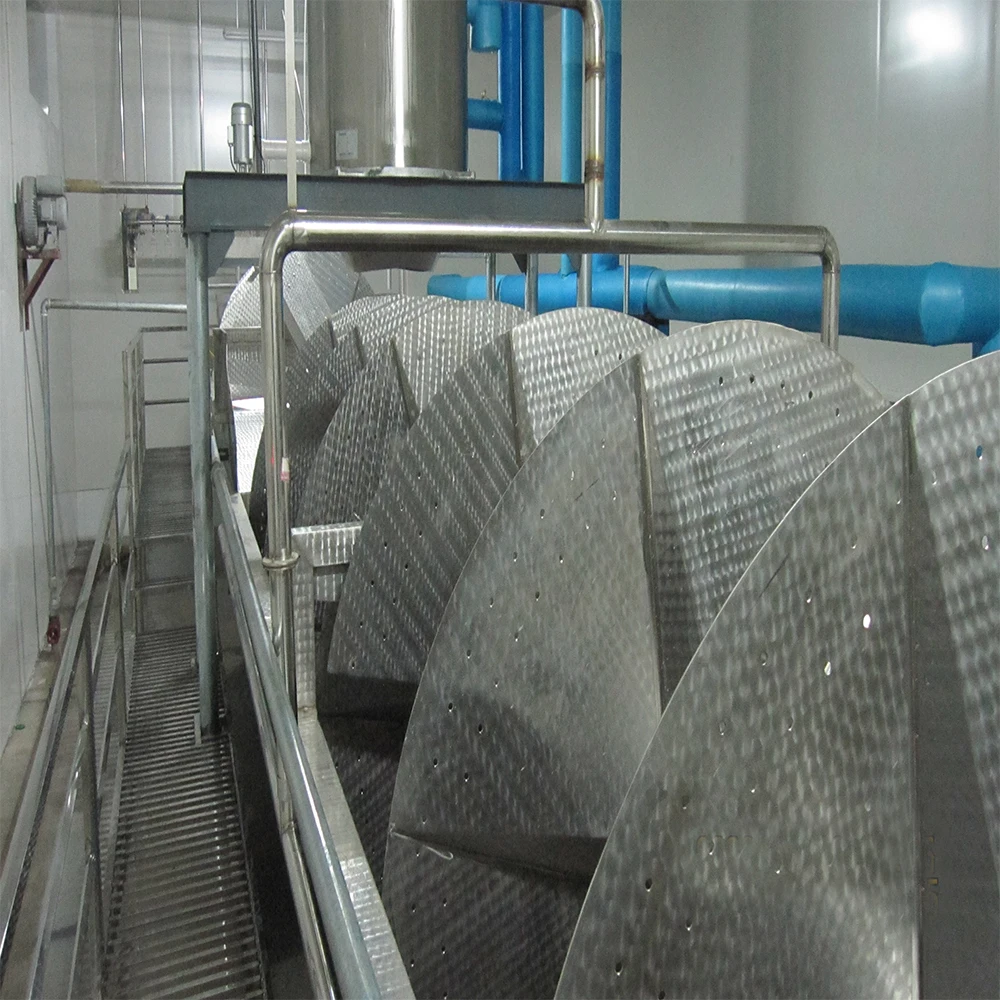

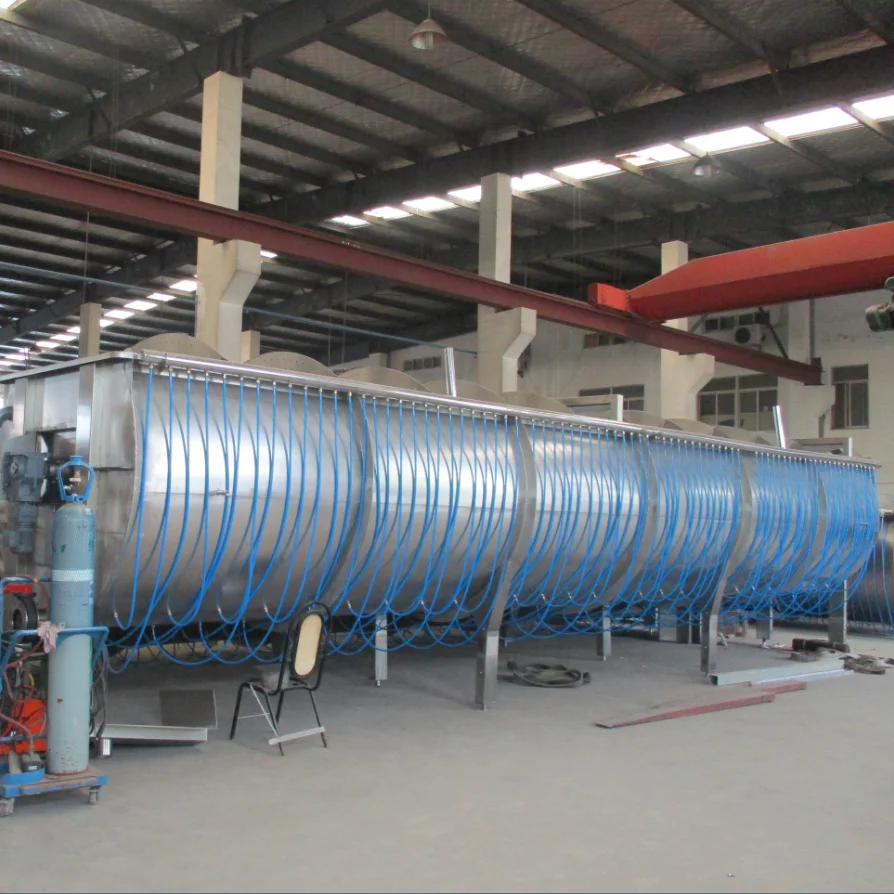

4. Pre-cooling is good effect, the birds body are move forward with the working of spiral blade, at meanwhile, at the bottom of
the cell body through the fan continuously bubbled up, so that the body continues to roll poultry, which will intrathoracic bloody
discharge. But also to a large extent due to ease of avian body trauma caused by subcutaneous congestion.
3. All stainless steel, beautiful, no health dead clean corners for easy cleaning.
5.Rotational speed of the spindle motor can be adjusted through the inverter, the effective control of avian body pre-cooling
time.
2. Structure and Working Principle

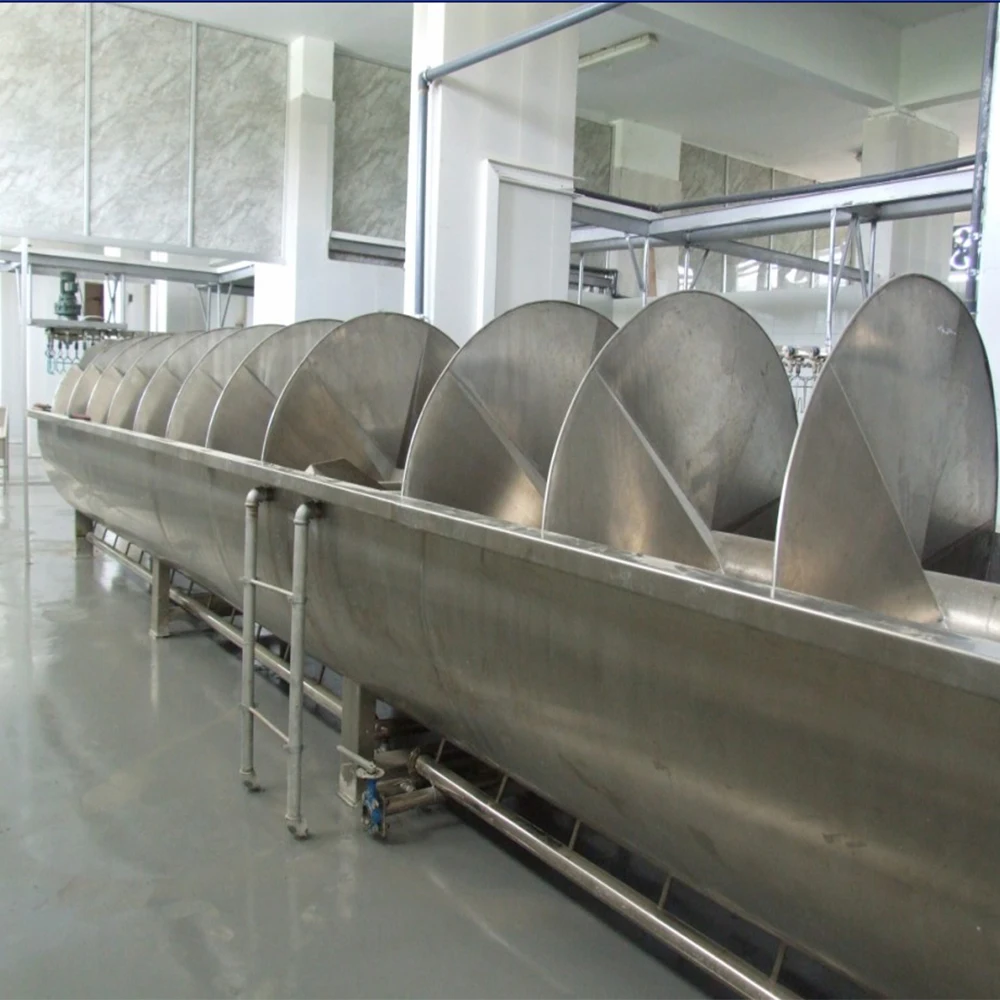

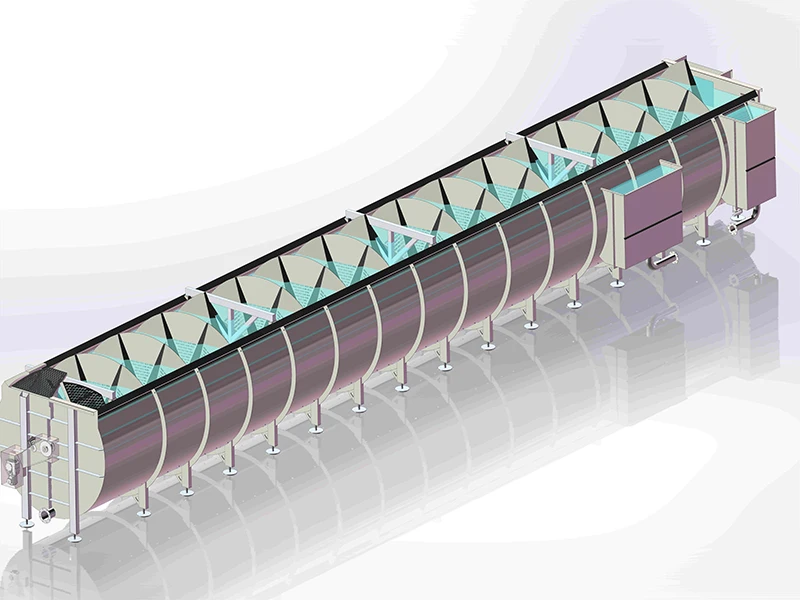

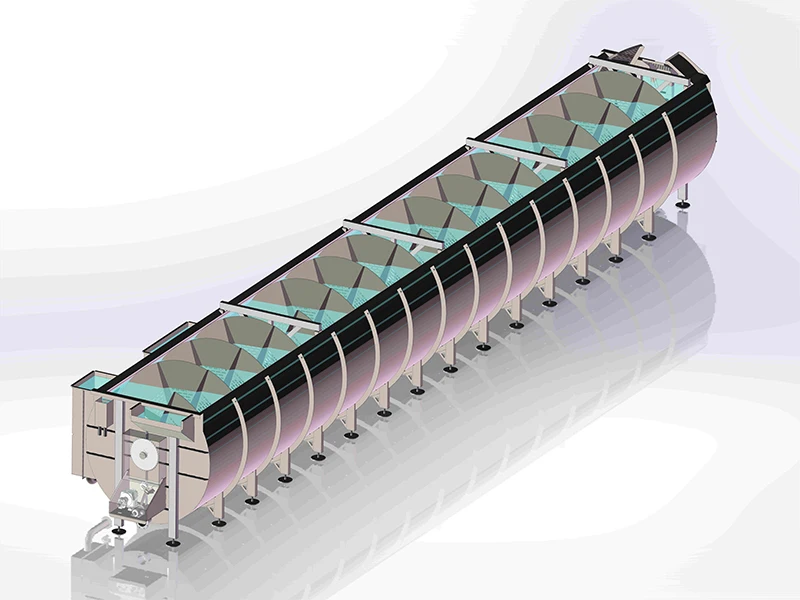

Spiral cooling machine sub-single and dual drive in two drives, the overall cleaning section is divided into sections and

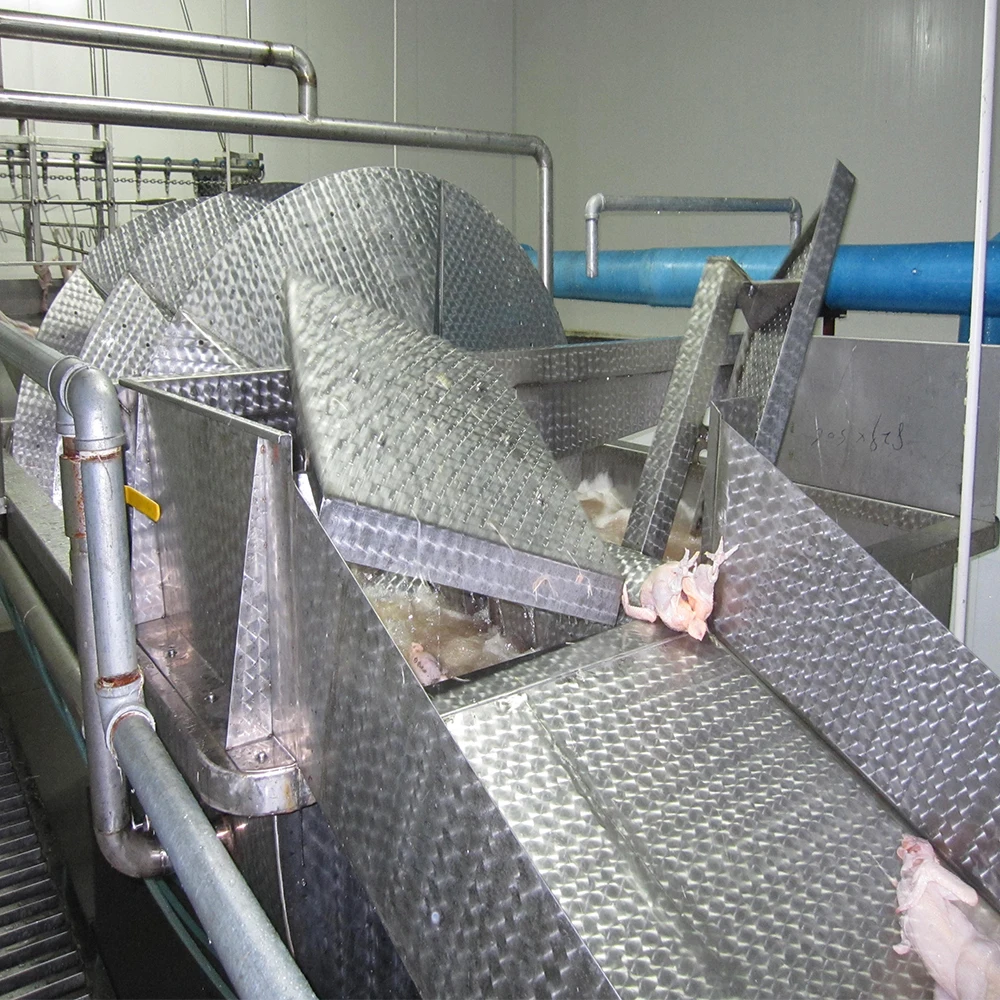

pre-cooling. By the half-cylindrical body, the spiral blade, the spindle, from poultry bucket, the driving part of the device and
other components.Always follow the principles of the work process poultry body and reverse the flow of water, which, after intake,
overflow port in front, the greatest degree of avian body clean.

The main component of the cooling machine: the cell body pre-cooling machine screw rotating blades, drive shaft, from the birds
fighting, the spindle drive gear, from birds bucket drive gear, fans, etc.
4.Installation and commissioning of the equipment and maintenance
1, in accordance with the requirements of the process in place, adjust the body's level of horizontal error of 0.5mm / M
2, due to shipping and handling reasons, before the formal operation should be no-load operation, check the direction of rotation
of the spiral blade also check leaves from the cell body and the presence of avian bucket touch scratch phenomenon, and adjust.
3, turn on the water to the pool, to the set level (generally associated with the spindle centerline relative level is
appropriate); check the water level at both ends of the height of the pre-cooling are the same; the cell body check for leakage.
4 reducer injection before use 40 # to 50 # machine oil, regular inspection and refueling (usually 3 months). Not inject dirty or
corrosive lubricants contain.
5, fan inlet must be kept clear of obstructions can not have any fever Check motor.
6, equipment and operations supervised payable to prohibit free to change the parameters of the inverter.
7, cooling machine during use is strictly prohibited in the following work
Cooling machine water level is too low, is still in use
Cooling machine carcass has exceeded the number of allowed number of design
Pool filled carcass body spindle drive and then start fighting drive from poultry
When birds from fighting stopped, the spindle gear continues to work
Stop the fan for a long time to work
8, the temperature regularly check the motor at work, when the motor temperature is too high, please stop working check (hand on
Check the motor).
9, regular cleaning of cooling machine duct.
10, is prohibited in equipment operation, the operator enters the pre-cooling machine.
11, when the work is prohibited in the cooling machine pool mouth and put your hands on both sides of the end plate opening
pre-cooling machine.
12, the sides need large capacity cooling machine is equipped with operation and maintenance work platforms.

Screw chiller is widely used in Poultry processing line, water chilling unit. According to the final products requests to decide
use water screw chilling, or can be combined water screw chilling with Air Chilling
1. how many types of chickens can it be processed?
A: It can process broiler ,layers, quails,goose,ducks and pigeon.

2.what is the capacity of this line?
A: We supply slaughter lines from 300bph to 1200bph, and if about 100-200bph, we suggest client to take manual slaugter system(electric scalder, drum plucker), and 300-500bph, you can take our compact slaughter line.

3.can it be process different weight of birds?
A: of course , but all the birds must be in the range of shackles, if the birds weight is too much different , they will drop from shackles, and the shackle distance is different from different birds.

4.Can you design and install the project for us?
A:We have good design and installation department for help you on this project.

5.What is the differences from Manual EV line to Automatic EV line?
A: as you know ,manual EV line is working by labors, and it can work with different weight of birds, but automatic line will only process almost same birds.

6.What is the differences from screw chiller to air chiller?
A: screw chiller is working with cooling water, so if you want the effect is good, you need arrange water chiller and ice flaker for cooling the normal water into cold water, its okay for the country that water is enough. Air chiller is like a cold room, which uses compressor unit and conveying line to make birds moving in the room, then the cold air meet with carcasses.

7.How is Connect Group?
A: Connect Group is a company in China, which have his own trademark, Our group totally have seven
companies, which including one poultry processing equipment manufacture, two rendering equipment manufacture, one broiler equipment plant, one fridge equipment construction plant, one trading company which responsible for marketing and Import and Export, and one Industrial company, we also cooperate with Netherland poultry processing equipment supplier JM to build fully automatic poultry processing plant, which covers the shortage of fully automatic Evisceration and cut-up equipment in China market.

8: Why we select Connect Group?
A:Connect Group is with the best service for the clients..Can you design and install the project for us?
